Liquidtight Flexible Nonmetallic Conduit , Flexible Plastic Wire Conduit Lightweight

  • 1
  • 2

Brand Name : HX

Model Number : HX-JSH

Certification : ISO9001, SGS

Place of Origin : CHINA

MOQ : 1000 M

Price : negotiatiable

Payment Terms : L/C, T/T

Supply Ability : 200000 Meter/ month

Delivery Time : 15-20days upon 1* 20GP

Packaging Details : plastic film or carton packing

Material : Galvanized steel

PVC color : black

Size : 3/4"

Accessory : pvc

Packing QTY : customizable

Printing : customizable

Contact Now

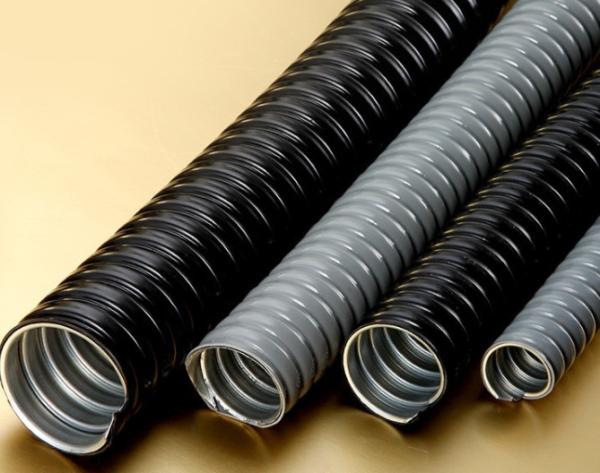

3/4" PVC coated galvanized flexible conduit , PVC coated flexible metal electrical conduit pipe

Product Parameters
Material: (inner layer) adopting
galvanized steel band with special
insulation treatment (outer layer) adopting PVC raw material (anti-UV, anti-aging) Color: Black and gray.
Working temperature: -10℃ ~ +80℃
Certification acquired: European Environmental Protection Certification
SGS: SH6134468/CHEM

Application:
Used for wire protection at railways, engines, traffic system engineering, air-conditioners, various machineries, automatic controlling equipment, power plants, chemical industries, power distribution system, communication system, vessels, mansions, factory buildings as well as the outdoors' exposed locations.

Put the wires/cables through the pipes and use it in the model corresponding to the hose connector/joint.


Used under floor applications computer/ floor boxes, bathroom fittings and interiors
Used to connect machines to controls
Useful in areas which are subject to heat and sparks (foundries, welding, and others)
Used as mechanical protection for insulated electrical cables and wires which are exposed to normal atmospheric conditions
It is widely used in highways, bridges, railways, and large-span prestressed concrete construction industry.

SIZE ID(mm) OD(mm) Bending
Radius (mm)
Lenght/roll m
MIN MAX MIN MAX
1/4" 9.7 10.2 14.4 14.7 45 100
3/8" 12.3 12.7 16.7 17.2 50 100
1/2" 15.8 16.2 20.2 20.7 65 50
3/4" 20.7 21.1 25.5 26.1 75 50
1" 6.2 26.8 31.6 32.2 100 50
11/4" 34.7 35.3 40.8 41.5 125 30
11/2" 40 40.7 16.6 47.2 150 25
2" 50.8 51.6 58.1 58.7 175 20
21/2" 63 63.6 71.8 72.4 200 10
3" 78 78.7 87.2 87.9 225 10
4" 101.6 102.6 111.2 112.3 275 10
