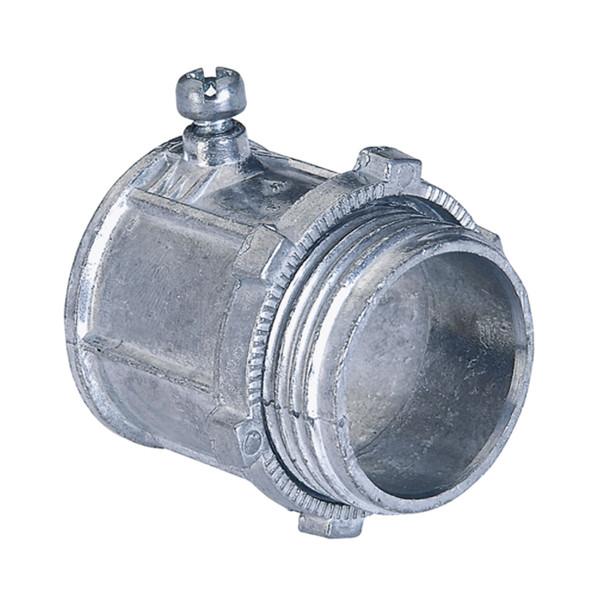

Metal Electrical Conduit Fittings Screw Type 4 Inch EMT Connector Set HX-SSCN

Yuyao Hengxing Pipe Industry Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Metal Electrical Conduit Fittings Screw Type 4 Inch EMT Connector Set HX-SSCN

  • 1
  • 2

Brand Name : HX

Model Number : HX-SSCN

Certification : UL ,ISO9001, SGS

Place of Origin : YUYAO CHINA

MOQ : 2000 PCS

Price : negotiatiable

Payment Terms : L/C, T/T

Supply Ability : 200 Ton / Month

Delivery Time : 15 -20 Days upon 1*20GP

Packaging Details : Inner plastic bag or inner Carton+ Outer Standard Carton + Pallet ( customers' packing requiement accepted )

Material : ZINC

Finish : POLISH

Size : 1/2"-4"

Type : insulated type

Insulated : Yellow color

Accessory : Steel screw

Contact Now

4" EMT connector , EMT connector set screw type , zinc die casting

Feature:

1. All of the materials we used are 1st Class , our EMT Pipe Set Screw Connectors are all high-quality , equipment and technics are very advanced. We pay much attention to every details of the quality from production to package.

2. Customers can find all the related fittings here,and can get all the goods you need In a shorter time.Like set screw couplingcompression connectorsstrut clampsreducing bushings and so on

3. All of our sales staff are professional and dedicated,and we offer good suggestion according to the demands of different customs from different countries.The most important is that Prostar is always responsible for our products, we offer the complete after-sale service. Exports to North America, the Middle East, Asia and other countries and regions.

Features:
- Zinc Die Cast
- Concrete-Tight when taped
- Combo Head Set-Screw
- Suitable for applications above 600V
- Sizes 2-1/2" to 4" are also listed for RIGID and IMC Conduits

Metal Electrical Conduit Fittings Screw Type 4 Inch EMT Connector Set HX-SSCN

Cat# Size d d1 L
SSCN-Z -050 1/2" G1/2" 18.5 19
SSCN-Z -075 3/4" G3/4" 24 23.3
SSCN-Z -100 1" G1" 30 25
SSCN-Z -125 11/4" G11/4" 38.8 34
SSCN-Z -150 11/2" G11/2" 45 36.2
SSCN-Z -200 2" G2" 56.4 43
SSCN-Z -250 21/2" G21/2" 74 74
SSCN-Z -300 3" G3" 90 85
SSCN-Z -400 4" G4" 115 94

Metal Electrical Conduit Fittings Screw Type 4 Inch EMT Connector Set HX-SSCN

Metal Electrical Conduit Fittings Screw Type 4 Inch EMT Connector Set HX-SSCN
